asus rog strix z590-f gaming wifi
, , ,

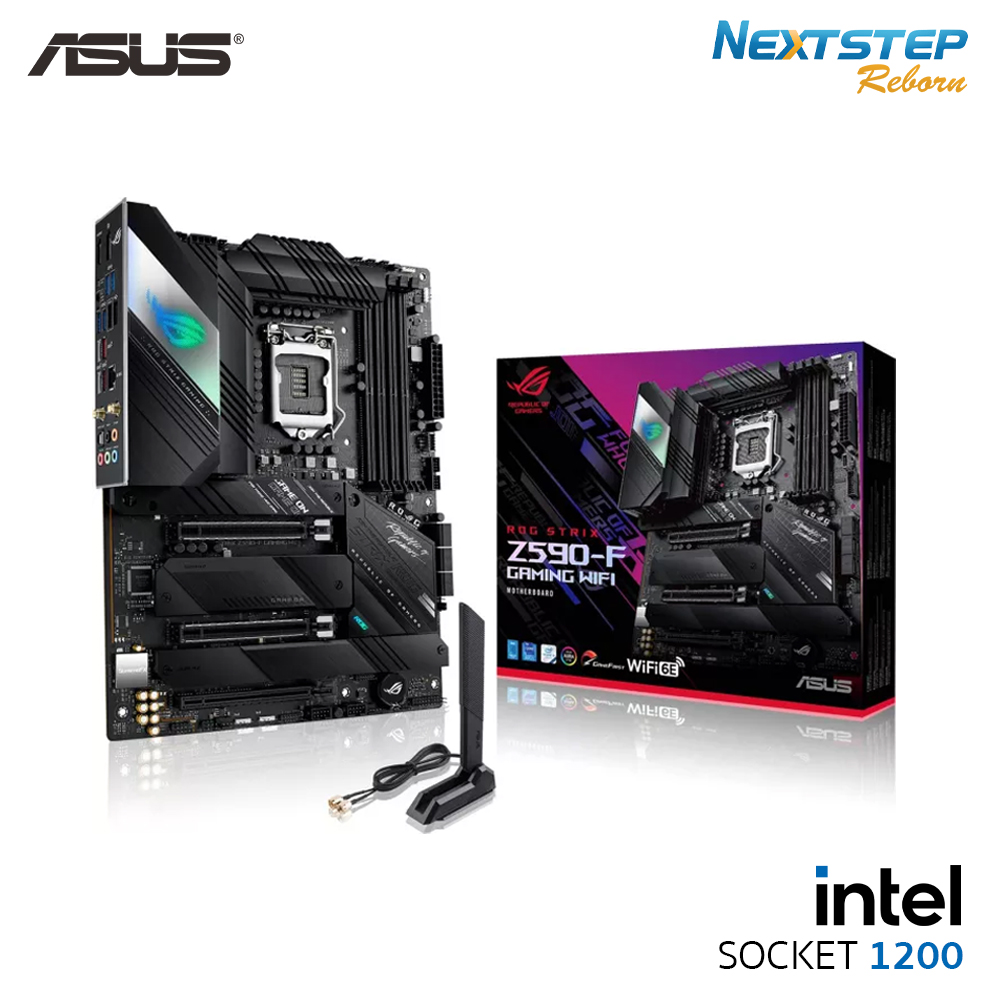

MAINBOARD ASUS ROG STRIX Z590-F GAMING WIFI SOCKET LGA 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

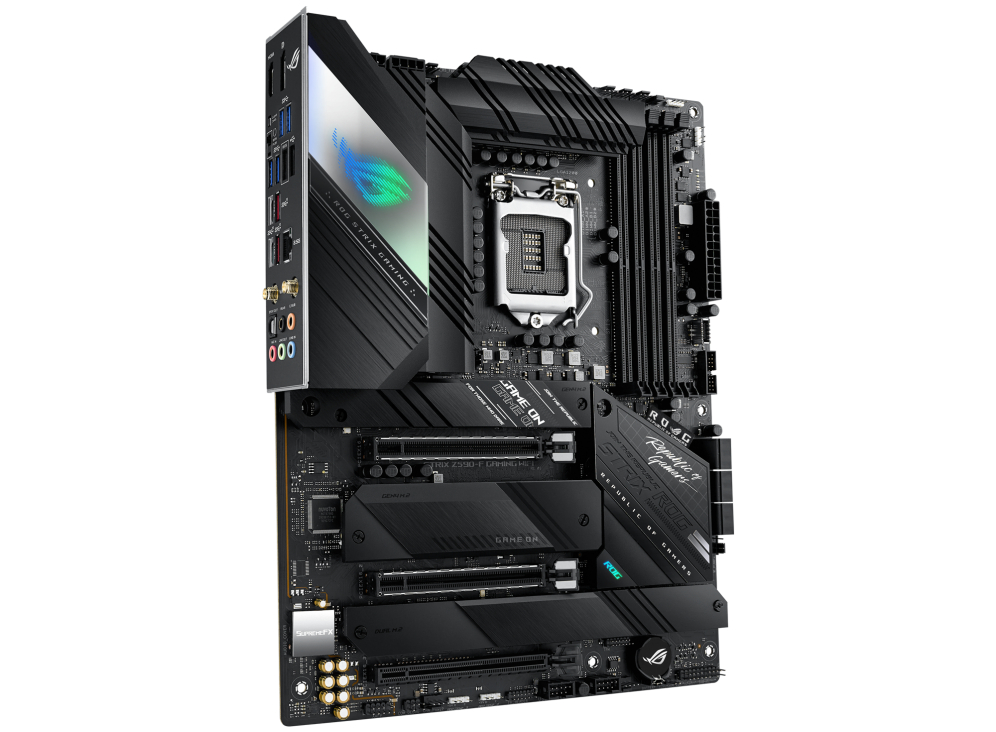

ROG STRIX Z590-F GAMING WIFI

มาเธอร์บอร์ด ROG Strix Z590-F Gaming WiFi ได้รับการออกแบบด้วยการส่งพลังงานที่เพิ่มขึ้นและการระบายความร้อนที่ปรับให้เหมาะสมเพื่อรับมือกับความต้องการของโปรเซสเซอร์ Intel ® Core™ Rocket Lake เจน เนอเรชั่นที่ 11 อันทรงพลัง นอกเหนือจาก Intel ® Wi-Fi 6E และ PCI Express ® 4.0 M.2 ล่าสุดสำหรับความเร็วการถ่ายโอนและการจัดเก็บข้อมูลที่เร็วมาก Strix Z590-F Gaming WiFi ยังมีฟีเจอร์ Two-Way AI Noise Cancelling เพื่อให้มั่นใจในการสื่อสารที่ชัดเจนในทุกสถานการณ์ Strix Z590-F Gaming WiFi เป็น ROG ที่ไม่ผิดเพี้ยนด้วยองค์ประกอบการออกแบบล้ำยุค โลโก้ ROG สีรุ้ง ผิวโมโนโครม และแสง Aura ที่จะทำให้งานสร้างของคุณมีรูปลักษณ์ที่ละเอียดอ่อนแต่มีชีวิตชีวา

ROG STRIX Z590-F GAMING WIFI

Intel® Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C®, SATA and Aura Sync RGB lighting

  • Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate for the PCIe 4.0 M.2 slot
  • High-performance Networking: On-board Intel® WiFi 6E AX210 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C®
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, and FlexKey
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Post Views: 1,945
รหัสสินค้า: NS05218 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

คุณสมบัติ

Brand ASUS
Model ROG STRIX Z590-F GAMING WIFI
CPU Support
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Socket LGA1200
Chipset Z590
Memory Support

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x HDMI 1.4b *
1 x DisplayPort 1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Multi Graphic Support N/A
Audio

Audio Features

– SupremeFX Shielding Technology

– ALC4080 + Savitech SV3H712 AMP

– Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Audio cover
Expansion Slots
2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)*

– Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s)

– Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

* Support PCIe bandwidth bifurcation for RAID on CPU function.
Storage

Intel®11th &10th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280/22110

– Intel® 11th processors support PCIe 4.0 x4 mode

– Intel® 10th processors support PCIe 3.0 x4 mode

Intel® Z590 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.
USB
Rear USB:Total 10 ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

1 x VRM heatsink Fan header

1 x W_PUMP+ header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 headers

1 x AURA RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header
Back Panel Connectors

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Intel® Wi-Fi 6E

1 x Intel® I225-V 2.5Gb Ethernet

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button
LAN
N/A
Wireless Data Network
N/A
Form Factor
ATX
30.5cm x 24.4cm
H/W MONITORING N/A
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features Extreme OC Kit
– FlexKey button
– LN2 Mode
– Probelt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Code
– Q-Connector
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 header(s)
Dual BIOS
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W.
ASUS HYDRANODE
– 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)
* Visit ASUS Website for the latest compatibility list.
Software Features ROG Exclusive Software

– RAMCache III

– ROG CPU-Z

– GameFirst VI

– Sonic Studio III + Sonic Studio Virtual Mixer

– Sonic Radar III

– DTS® Sound Unbound

– Overwolf

– Anti-virus software

– AIDA64 Extreme (60 days free trial)

ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation

AI Suite 3

– 5-Way Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo app

– EZ update

DAEMON Tools

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86
Operating System Support Windows 10 64bit
Dimension N/A
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
