mainboard msi mpg z590 gaming force
, , ,

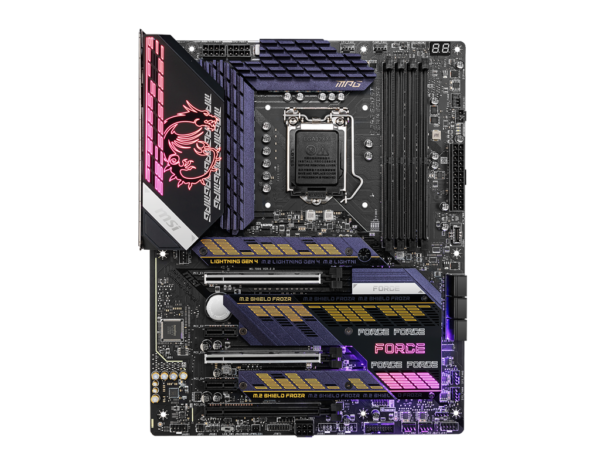

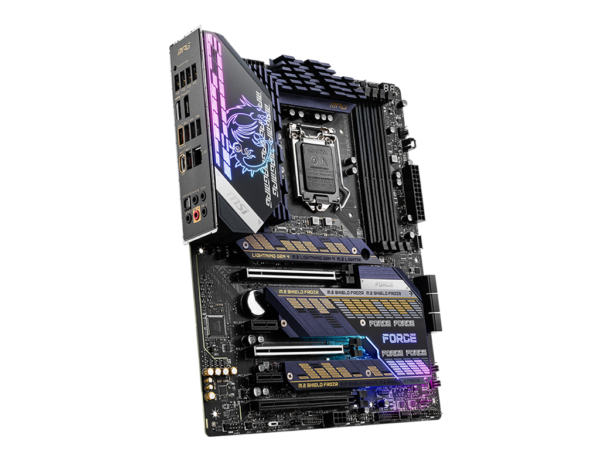

MAINBOARD MSI MPG Z590 GAMING FORCE SOCKET 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

MPG Z590 GAMING FORCE ด้วยประสบการณ์หลายปี MSI นั้นไม่ใช่คนแปลกหน้าในการสร้างมาเธอร์บอร์ดประสิทธิภาพสูง ทีมวิจัยและพัฒนาและวิศวกรของเราได้ตรวจสอบการออกแบบนับไม่ถ้วน ประเมินส่วนประกอบคุณภาพสูงที่มีให้เลือกมากมาย และพัฒนาผลิตภัณฑ์เพื่อความน่าเชื่อถือแม้ในสภาวะที่รุนแรง ปลดปล่อยและรักษาประสิทธิภาพสูงสุดด้วยการออกแบบ VRM ที่ดุดันซึ่งสร้างขึ้นด้วย Duet Rail Power System (DRPS) ทั้งหมด 16 ตัว การรวมคอนเน็กเตอร์เพาเวอร์แบบ 8 พิน 2x และเทคโนโลยี Core Boost แบบเอกสิทธิ์ มาเธอร์บอร์ดซีรีย์ MPG พร้อมที่จะรองรับการทำงานหนักในแต่ละวัน

MPG Z590 GAMING FORCE

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Post Views: 1,006
รหัสสินค้า: NS06443 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

คุณสมบัติ

Brand MSI
Model MSI MPG Z590 GAMING PLUS
CPU Support Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1200

Please go to intel.com for compatibility information.
Socket 1200
Chipset Intel® Z590 Chipset
Memory Support
  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support Supports 3-Way AMD® CrossFire™ Technology
Audio Realtek® ALC4080 Codec

7.1-Channel High Definition Audio
Expansion Slots 3x PCIe x16 slots

  • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

PCI_E1 & PCI_E3 slots (From CPU)

  • Support PCIe 4.0 for 11th Gen Intel® CPU
  • Support PCIe 3.0 for 10th Gen Intel® CPU

PCI_E5 slot (From Z590 Chipset)

  • Supports PCIe 3.0

2x PCIe 3.0 x1 slots (From Z590 Chipset)
Storage 6x SATA 6Gb/s ports (From Z590 Chipset)

3x M.2 slots (Key M)

M2_1 slot (From CPU)

  • Available only on 11th Gen Intel® CPU
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_21 & M2_32 slot (From Z590 Chipset)

  • Supports PCIe 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready3

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.

Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB

Intel® Z590 Chipset

  • 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
  • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)

Hub-GL850G

  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
Internal I/O Connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
Back Panel Connectors
  • USB 2.0
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • 2.5G LAN
  • Audio Connectors
  • Flash BIOS Button
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF Out
LAN 1x Intel® I225V 2.5Gbps LAN controller
Wireless Data Network N/A
Form Factor ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
H/W MONITORING 9 mounting holes
BIOS N/A
Special Features LED FEATURE

  • 1x EZ LED Control switch
  • 4x EZ Debug LED
  • 1x 2-Digit Debug Code LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector
Software Features N/A
Operating System Support Support for Windows® 10 64-bit
Dimension

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
