mainboard msi mag z590 torpedo
, , ,

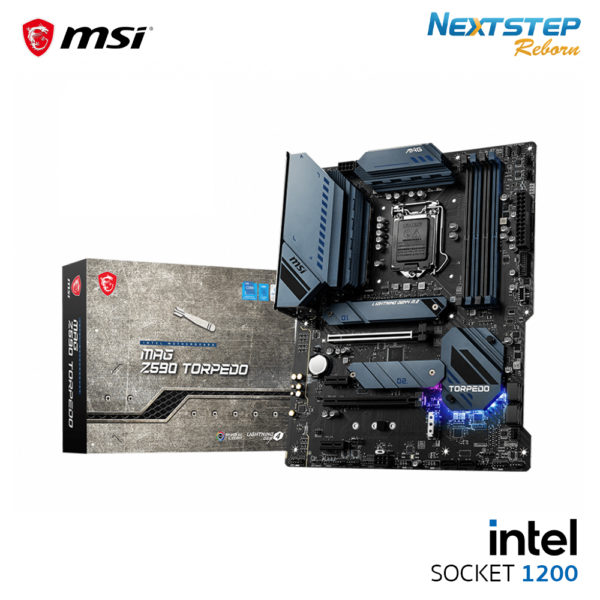

MAINBOARD MSI MAG Z590 TORPEDO SOCKET 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

ด้วยโปรเซสเซอร์ของคอร์ที่มากขึ้น การออกแบบการระบายความร้อนและพลังงานจึงมีความสำคัญมากขึ้นเพื่อให้แน่ใจว่าอุณหภูมิจะต่ำลง ฮีทซิงค์ PWM แบบขยายของ MSI และการออกแบบวงจรที่ได้รับการปรับปรุงช่วยให้มั่นใจได้ว่าซีพียู Intel ระดับไฮเอนด์จะทำงานด้วยความเร็วเต็มที่กับมาเธอร์บอร์ด MSI ตรวจจับอุณหภูมิ CPU & GPU และปรับการทำงานของพัดลมของพัดลมระบบโดยอัตโนมัติเพื่อให้ได้ค่าที่เหมาะสมโดยใช้ MSI AI ENGINE เชื่อมต่อและซิงโครไนซ์กับตัวทำความเย็นและเคสของ MSI ด้วยตำแหน่งหัวเข็มหมุดที่วางไว้อย่างมีกลยุทธ์ รวมถึงส่วนหัวของพัดลมปั๊มโดยเฉพาะ

MSI MAG Z590 TORPEDO

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Post Views: 1,271
รหัสสินค้า: NS05248 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

MSI MAG Z590 TORPEDO

การรับประกัน

2 ปี

คุณสมบัติ

Brand MSI
Model MAG Z590 TORPEDO
CPU Support Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1200

Please go to intel.com for compatibility information.
Socket 1200
Chipset Intel® Z590 Chipset
Memory Support 4x DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Max overclocking frequency:

  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory.
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support Supports 2-Way AMD® CrossFire™ Technology
Audio Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output
Expansion Slots 2x PCIe x16 slots

1x PCIe 3.0 x16 slot (from CPU)

  • Support up to PCIe 4.0 for 11th Gen Intel® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E3 (From Z590 chipset)

  • Support up to PCIe 3.0 x4

2x PCIe 3.0 x1 slots (From Z590 chipset)
Storage 6x SATA 6Gb/s ports (From Z590 chipset) 1

3x M.2 slots (Key M)

M2_1 slot (From CPU)

  • Available only on 11th Gen Intel® CPU
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_21 & M2_3 2 slot (From Z590 chipset)

  • Supports up to PCIe 3.0 x4
  • Supports SATA up to 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready 3

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.

Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB

Intel® Z590 Chipset

  • 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
  • 1x USB 2.0 Type-A port on the back panel

Hub-GL850G

  • 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Internal I/O Connectors 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

1x 6-pin PCIE power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector
Back Panel Connectors DisplayPort

USB 2.0

Gigabit LAN Port

2.5G LAN Port

HD Audio Connectors

HDMI

Flash BIOS Button

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF OUT
LAN 1x Intel® I225-V 2.5Gbps LAN controller

1x Intel® I219-V 1Gbps LAN controller
Wireless Data Network N/A
Form Factor ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
H/W MONITORING 9 mounting holes
BIOS N/A
Special Features LED FEATURE

  • 1x EZ LED Control switch
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Software Features N/A
Operating System Support Support for Windows® 10 64-bit
Dimension

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
