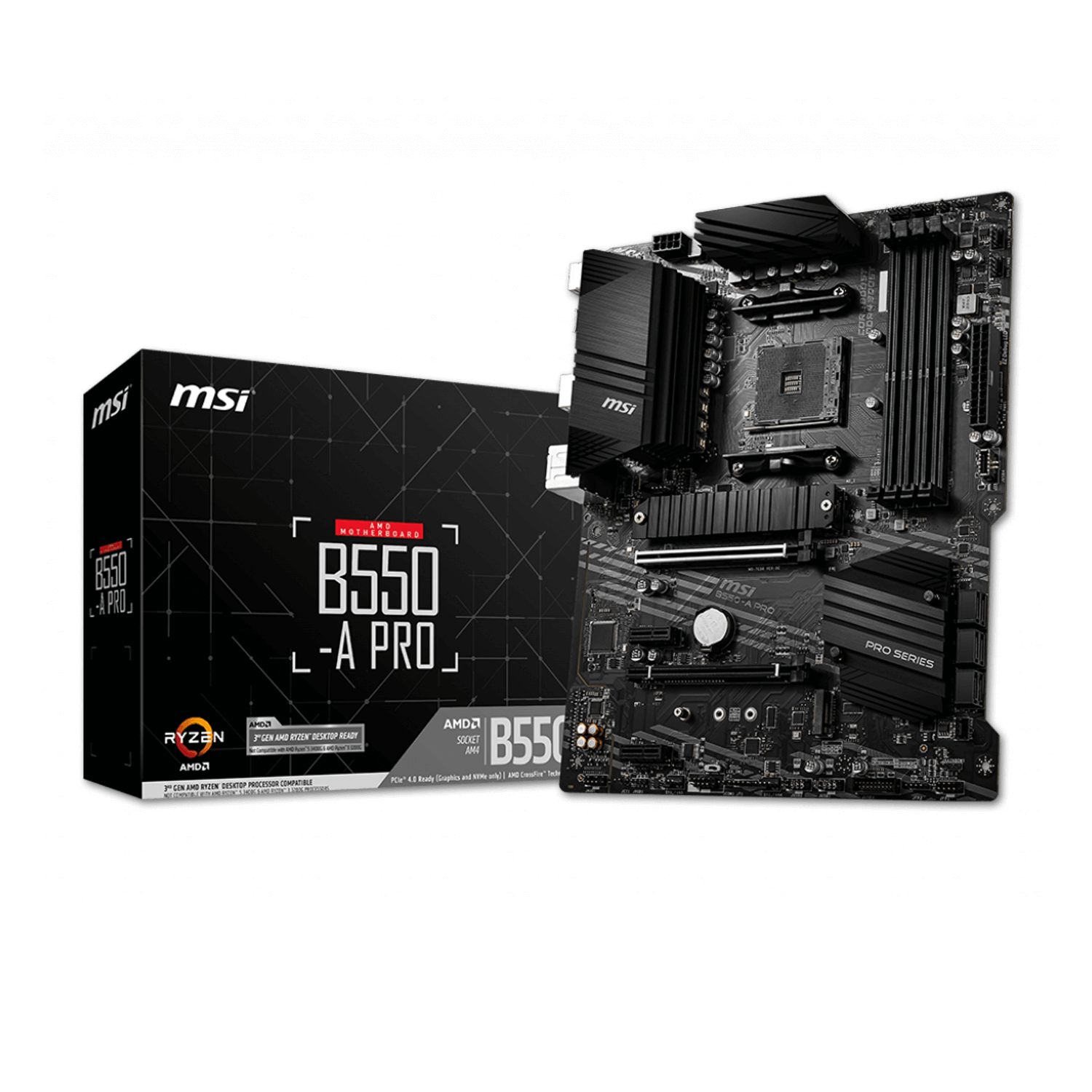

MAINBOARD MSI B550-A PRO SOCKET AM4 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

MSI B550-A PRO ซีรีส์ PRO ช่วยให้ผู้ใช้ทำงานได้อย่างชาญฉลาดยิ่งขึ้นด้วยการนำเสนอประสบการณ์ที่มีประสิทธิภาพและประสิทธิผล ด้วยฟังก์ชันการทำงานที่เสถียรและการประกอบคุณภาพสูง มาเธอร์บอร์ดซีรีส์ PRO ไม่เพียงแต่ให้เวิร์กโฟลว์ระดับมืออาชีพที่ปรับให้เหมาะสมเท่านั้น แต่ยังช่วยแก้ไขปัญหาและอายุการใช้งานที่น้อยลงอีกด้วย

MSI B550-A PRO

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad and 7W/mK pad, and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Post Views: 1,235
รหัสสินค้า: NS04926 หมวดหมู่: , , , ป้ายกำกับ: , , ,

MSI B550-A PRO

การรับประกัน

2 ปี

คุณสมบัติ

Brand MSI
Model B550-A PRO
CPU Support Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4
Chipset AMD B550 Chipset
Memory Support 4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

1DPC 1R Max speed 4800 MHz

1DPC 2R max speed 3866 MHZ

2DPC 1R max speed 4000 MHZ

2DPC 2R max speed 3600 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory
Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 2
Support HDCP 1.4 & 2.3

1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support Supports 2-Way AMD CrossFire™ Technology
Audio Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Storage AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0×4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back Panel Connectors
  1. Keyboard / Mouse
  2. DisplayPort
  3. LAN
  4. HD Audio Connectors
  5. Flash BIOS Button
  6. USB 2.0
  7. HDMI
  8. USB 2.0
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2 10Gbps Type-A+C
LAN 1x Realtek® 8111H Gigabit LAN controller
Wireless Data Network None
Form Factor m-ATX Form Factor
H/W MONITORING 9 mounting holes
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 10 64-bit
Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
