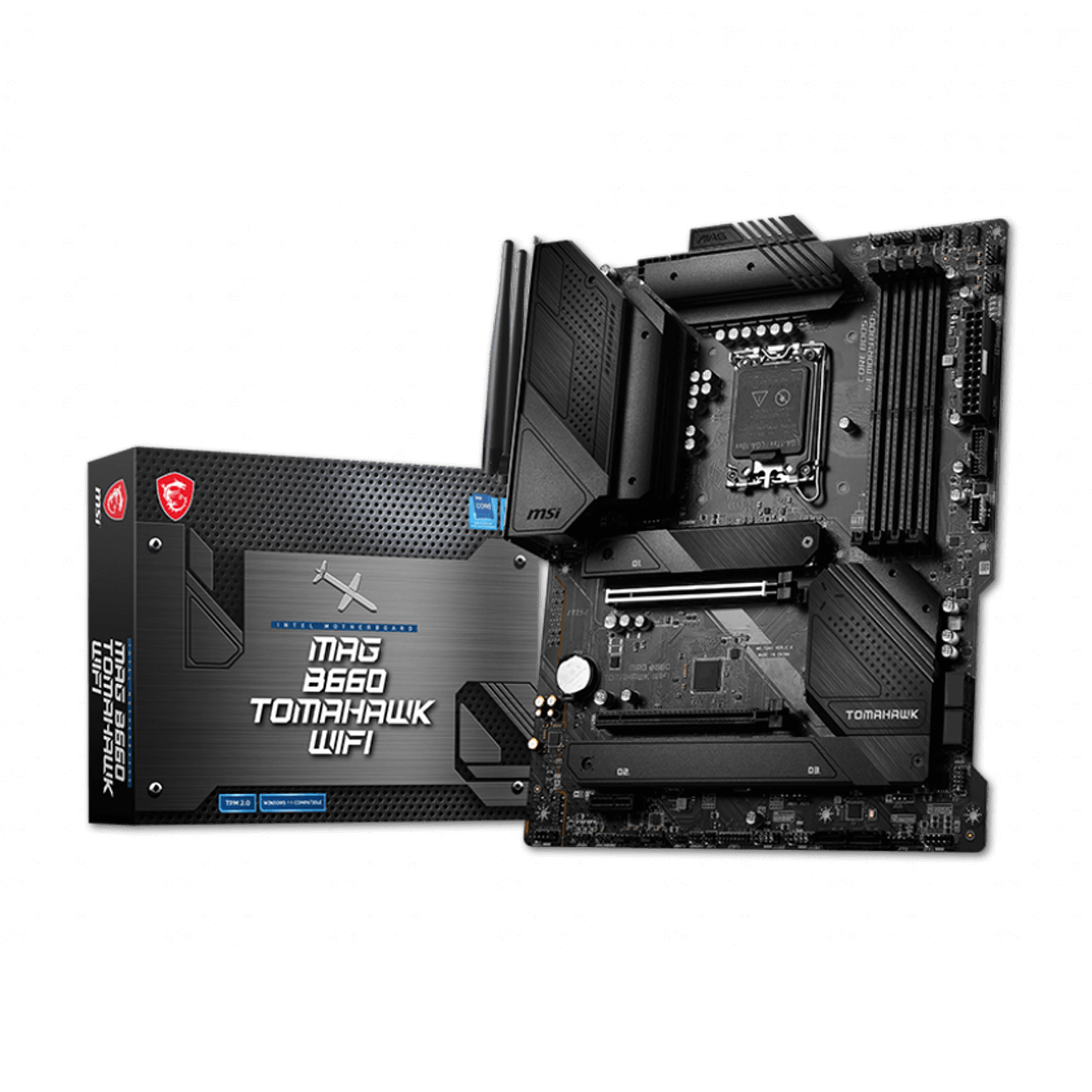

MSI MAG-B660-TOMAHAWK-WIFI
, , ,

MAINBOARD MAG B660 TOMAHAWK WIFI DDR4 SOCKET 1700 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Browse wishlist
Compare

ด้วยโปรเซสเซอร์ของคอร์ที่มากขึ้น การออกแบบการระบายความร้อนและพลังงานจึงมีความสำคัญมากขึ้นเพื่อให้แน่ใจว่าอุณหภูมิจะต่ำลง ฮีทซิงค์ PWM แบบขยายของ MSI และการออกแบบวงจรที่ได้รับการปรับปรุงช่วยให้มั่นใจได้ว่าซีพียู Intel ระดับไฮเอนด์จะทำงานด้วยความเร็วเต็มที่กับมาเธอร์บอร์ด MSI

โซลูชัน Wi-Fi 6E ล่าสุดรองรับคลื่นความถี่ 6GHz, Bluetooth 5.2, เทคโนโลยีสี MU-MIMO แบบสองทางและ BSS ให้ความจุเครือข่ายสูงสุด 4 เท่าและประสิทธิภาพในสภาพแวดล้อมที่มีความหนาแน่นของสัญญาณสูง ให้ความเร็วสูงสุด 2400Mbps



MAG B660 TOMAHAWK WIFI

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6200+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Post Views: 1,064
รหัสสินค้า: NS07279 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

MSI MAG B660 TOMAHAWK WIFI DDR4

การรับประกัน

2 ปี

คุณสมบัติ

Brand MSI
Model MAG B660M MORTAR WIFI DDR4
CPU Support Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.
Socket 1700
Chipset Intel® B660 Chipset
Memory Support 4x DDR5 memory slots, support up to 128GB 1

Supports 1R 4800 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 6200+ MHz

1DPC 2R Max speed up to 5200+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support Supports AMD® CrossFire™ Technology
Audio Realtek® ALC1220P Codec

7.1-Channel High Definition Audio

Supports S/PDIF output
Expansion Slots 2x PCIe x16 slots

PCI_E1 (From CPU)

Support up to PCIe 4.0

PCI_E2 (From B660 chipset)

Support up to PCIe 3.0 x4

1x PCIe 3.0 x1 slot (From B660 chipset)
Storage 6x SATA 6Gb/s ports

  • SATA5~8 (From B660 chipset)
  • SATAA~B (From ASM1061)

3x M.2 slots (Key M)

M2_1 slot (From CPU)

  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 & M2_3 slots (From B660 chipset)

  • M2_2 supports up to PCIe 4.0 x4
  • M2_3 supports up to PCIe 4.0 x2 1
  • Supports SATA up to 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
USB Intel® B660 Chipset

1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)

5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)

2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector

8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Internal I/O Connectors 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

5x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connecto
Back Panel Connectors USB 2.0 Port

DisplayPort 1.4

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF OUT
LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
Wireless Data Network Intel® Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2 2, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor N/A
H/W MONITORING N/A
BIOS N/A
Special Features LED FEATURE

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimension ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
