MAINBOARD ASUS PRIME H510M-E Socket 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

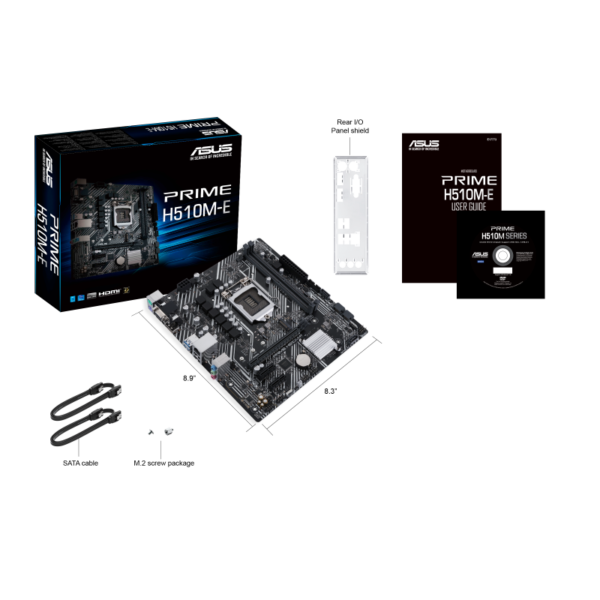

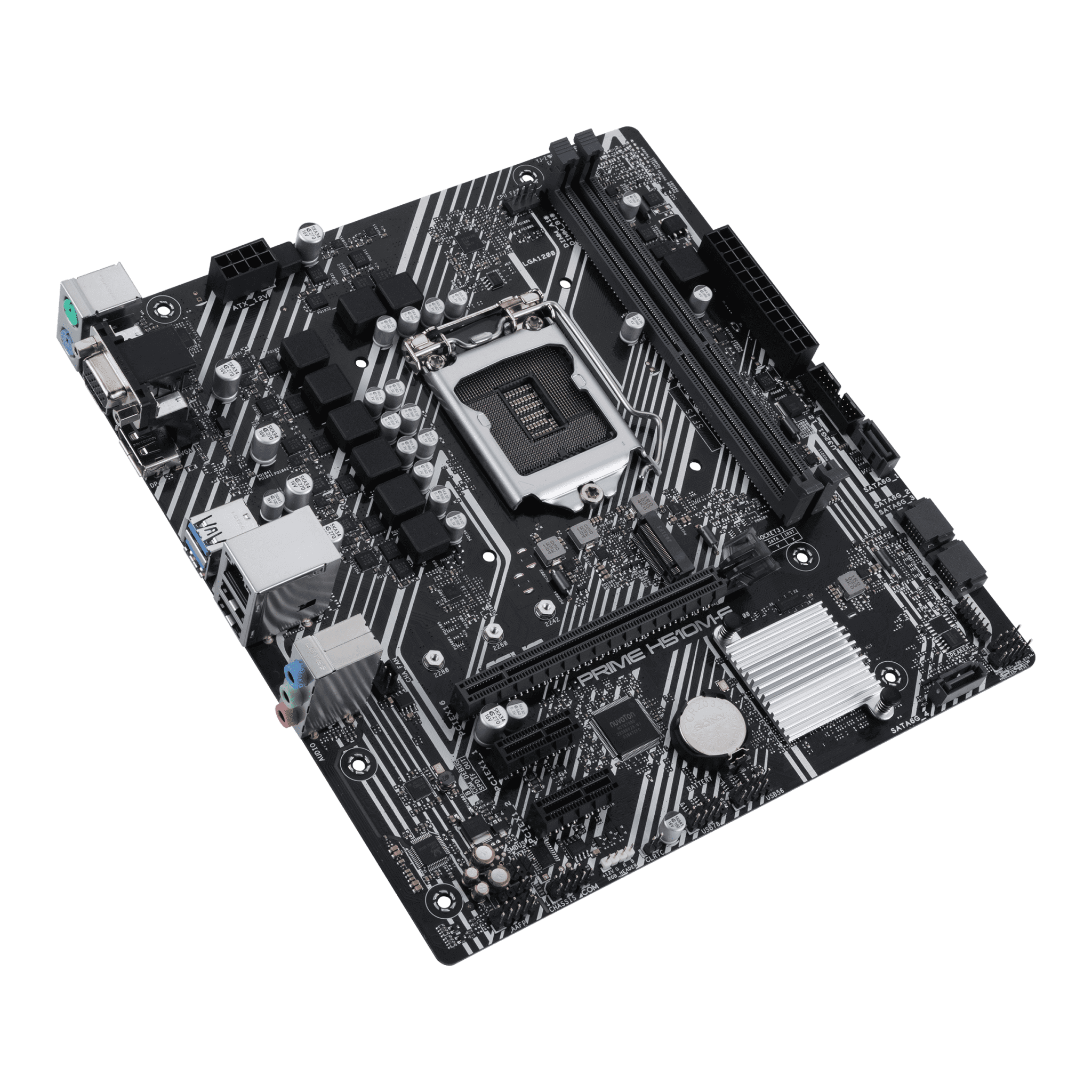

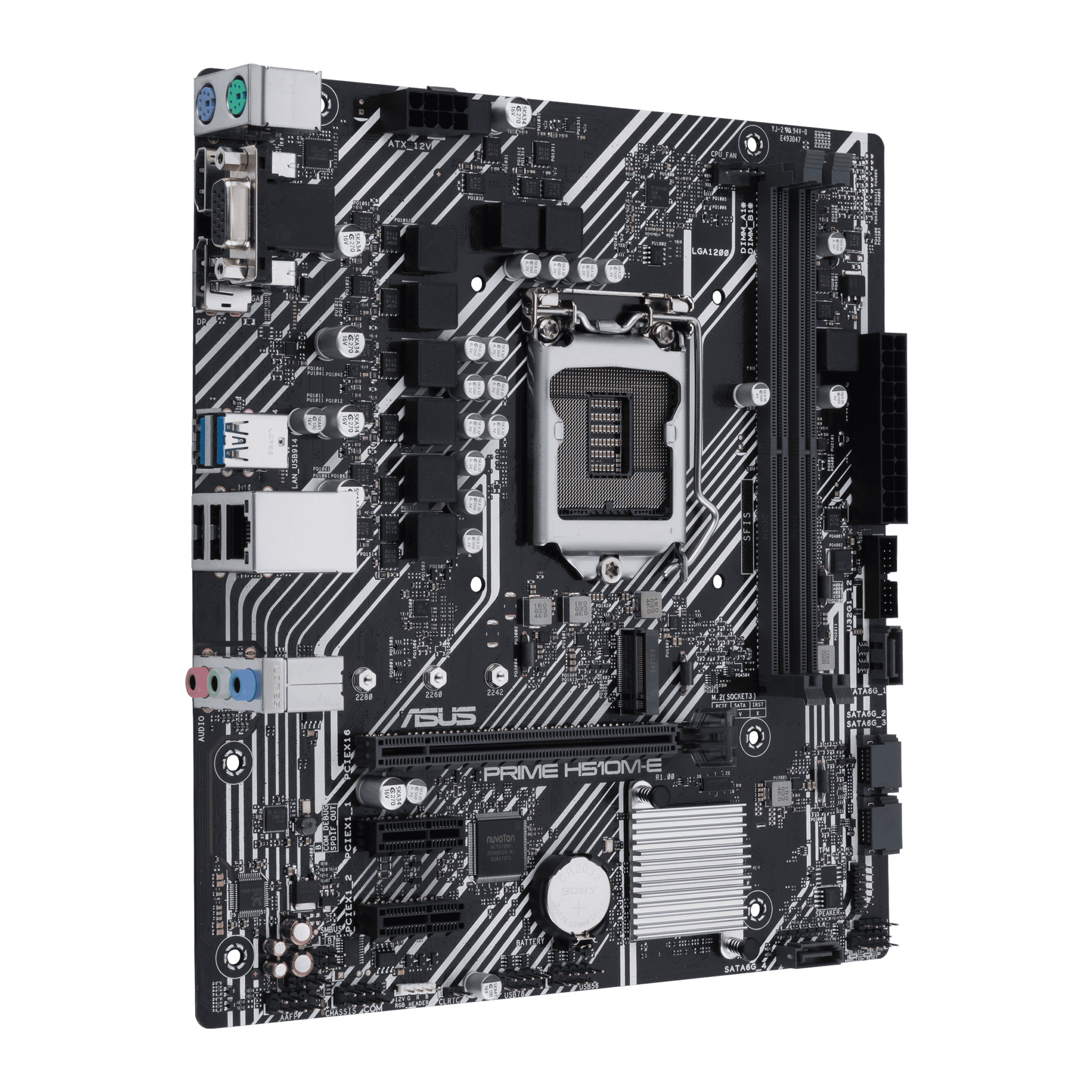

ASUS PRIME H510M-E

มาเธอร์ บอร์ด ASUS Prime series ได้รับการออกแบบอย่างเชี่ยวชาญเพื่อปลดปล่อยศักยภาพของโปรเซสเซอร์Intel ® เจน เนอเรชั่นที่ 10 และ 11 อย่าง เต็มประสิทธิภาพ ด้วยการออกแบบพลังงานที่แข็งแกร่ง โซลูชันการระบายความร้อนที่ครอบคลุม และตัวเลือกการปรับแต่งที่ชาญฉลาด PRIME H510M-E มอบตัวเลือกการปรับแต่งประสิทธิภาพที่หลากหลายให้กับผู้ใช้รายวันและผู้สร้างพีซี DIY ด้วยซอฟต์แวร์ที่ใช้งานง่ายและคุณสมบัติเฟิร์มแวร์

ASUS PRIME H510M-E

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header
  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
  • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 Type-A
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • 5X Protection III: Multiple hardware safeguards for all-round protection
Post Views: 1,807
หมวดหมู่: , , , ป้ายกำกับ: , ,
การรับประกัน

2 ปี

คุณสมบัติ

Brand ASUS
Model PRIME H510M-E
CPU Support Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Socket 1200
Chipset Intel H510
Memory Support Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency
Graphics 1 x DisplayPort 1.4**
1 x D-Sub
1 x HDMI™ 2.0***
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots Intel® 11th & 10th Gen Processors
Multi Graphic Support None
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”Audio Features
– Audio Shielding
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
– Intel® 11th Gen processors support PCIe 4.0 x16
– Intel® 10th Gen processors support PCIe 3.0 x16Intel® H510 Chipset
2 x PCIe 3.0 x1 slots
Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.
USB Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan headerPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectorStorage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Back Panel Connectors 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
LAN 1 x Intel® I219-V 1Gb Ethernet
Wireless Data Network None
Form Factor mATX Form Factor
22.6cm x 21.1cm
H/W MONITORING N/A
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/OASUS Q-Design
– Q-DIMM
– Q-SlotASUS Thermal Solution
– Aluminum heatsink designASUS Lighting Control
– RGB header
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRARUEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 10 64-bit
