MAINBOARD ASUS PRIME H410M-K Socket 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว

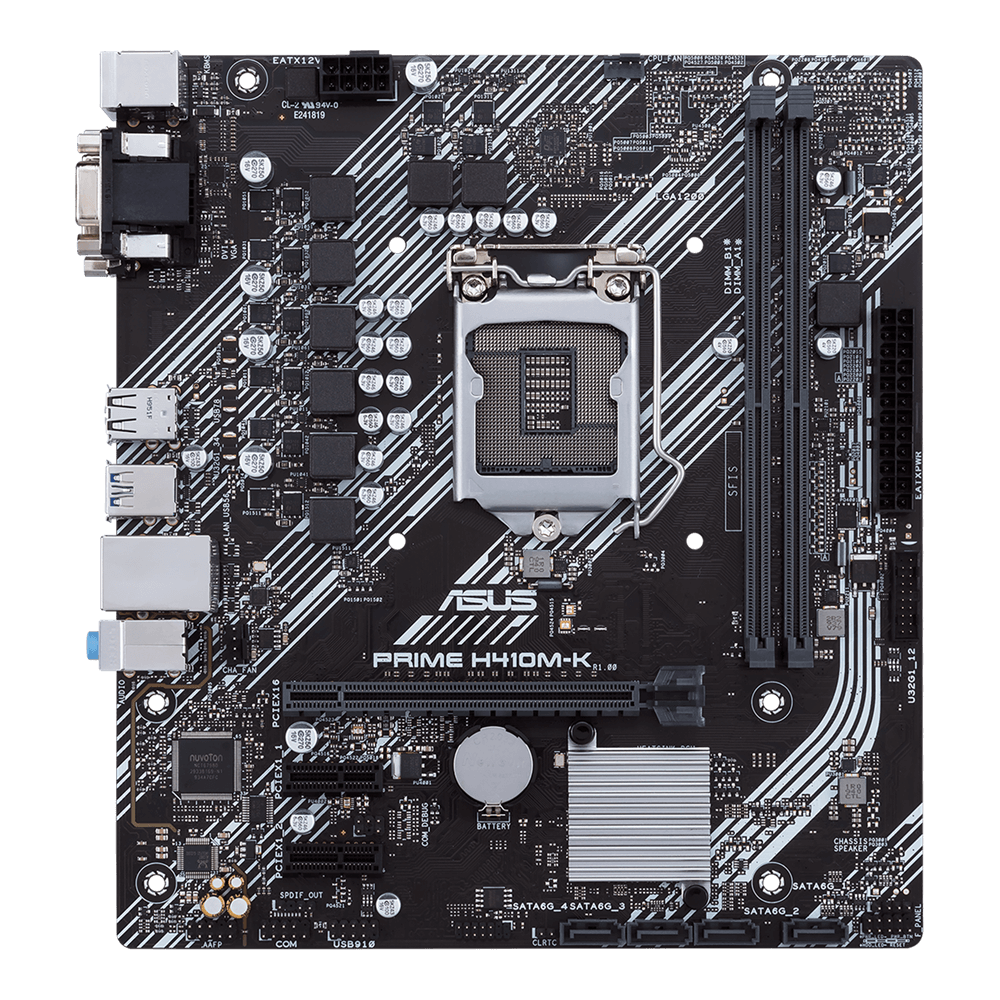

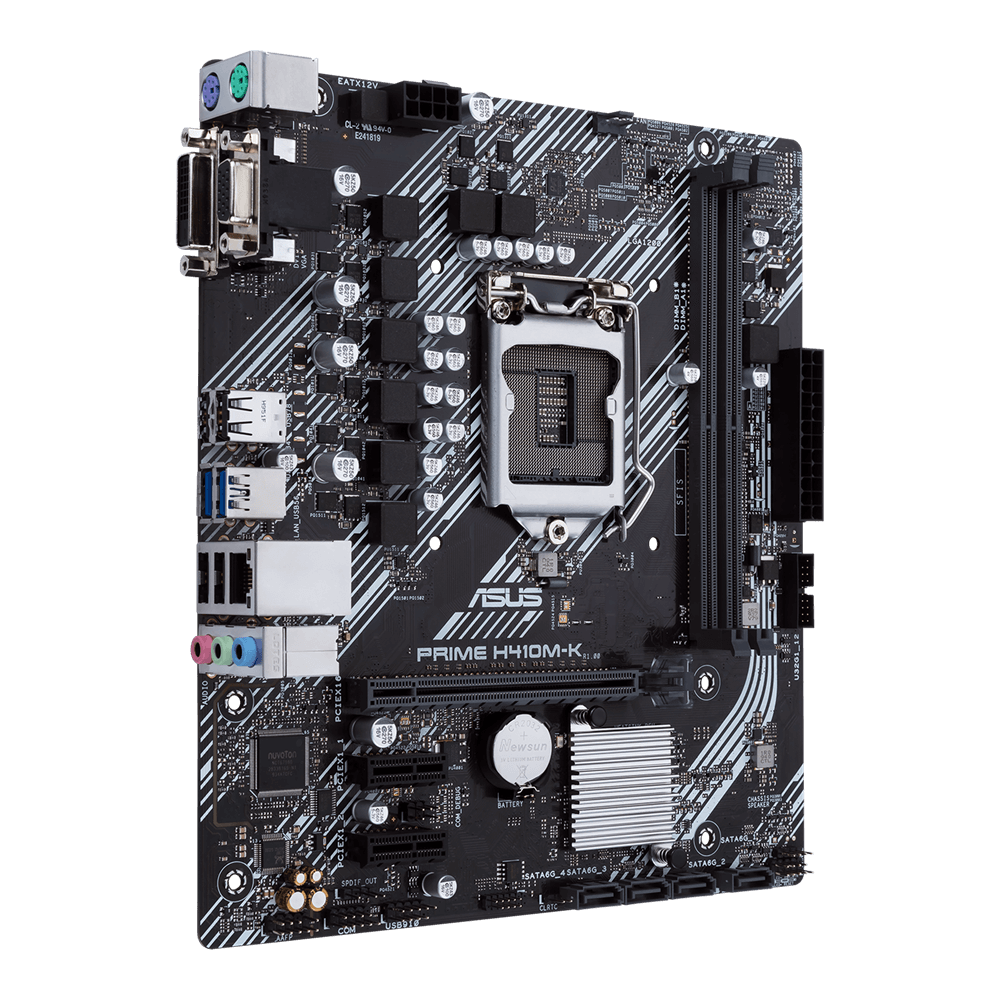

ASUS PRIME H410M-K

ASUS Prime series ได้รับการออกแบบอย่างเชี่ยวชาญเพื่อปลดปล่อยศักยภาพของโปรเซสเซอร์ Intel ® Core™ เจนเนอเรชั่น 10 อย่างเต็มประสิทธิภาพ ด้วยการออกแบบพลังงานที่แข็งแกร่ง โซลูชันการระบายความร้อนที่ครอบคลุม และตัวเลือกการปรับแต่งที่ชาญฉลาด มาเธอร์บอร์ดซีรีส์ Prime H410 ให้ผู้ใช้รายวันและผู้สร้างพีซี DIY มีตัวเลือกในการปรับแต่งประสิทธิภาพผ่านซอฟต์แวร์และฮาร์ดแวร์ที่รวมไว้

Compare

ASUS PRIME H410M-K

Intel® H410 (LGA 1200) mic-ATX motherboard with DDR4 support, DVI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header
  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
การรับประกัน

2 ปี

คุณสมบัติ

Brand ASUS
Model PRIME H410M-K
CPU Support Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Socket 1200
Chipset Intel H410
Memory Support 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics Integrated Graphics Processor
1 x DVI-D
1 x D-Sub
*Graphics specifications may vary between CPU types.
Multi Graphic Support None
Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Expansion Slots Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1
Storage Total supports 4x SATA 6Gb/s ports
Intel® H410 Chipset :
4 x SATA 6Gb/s port(s)
USB Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Internal I/O Connectors 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Back Panel Connectors 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s)
LAN Realtek® RTL8111H
Wireless Data Network None
Form Factor mATX Form Factor
8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm )
H/W MONITORING N/A
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 10 64-bit
Dimension (W x D x H) : 20.30 x 22.60 x 3.60 cm
Net Weight 0.44 KG
Package Dimension (W x D x H) : 26.30 x 27.00 x 5.00 cm
Gross Weight 0.80 KG
Volume 3,550.50 cm3
